2016 Ford Transit 350 Wagon Specs, Features & Options
Here's everything you need to know about each trim in the 2016 Ford Transit 350 Wagon lineup. Compare pricing, specs, key features and more.

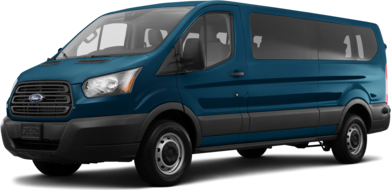

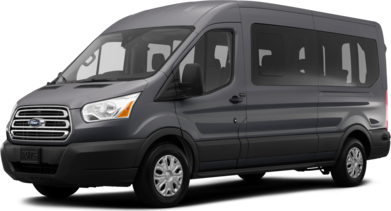

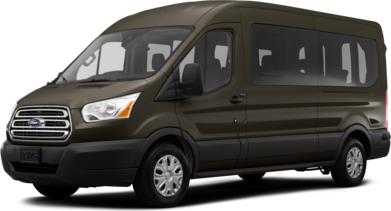

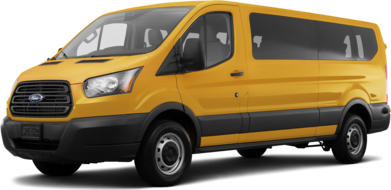

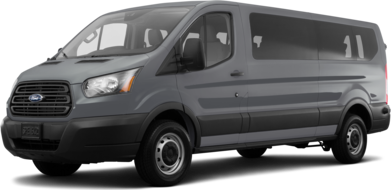

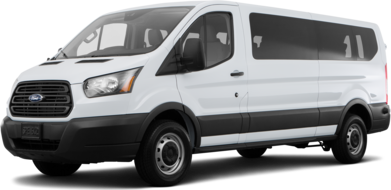

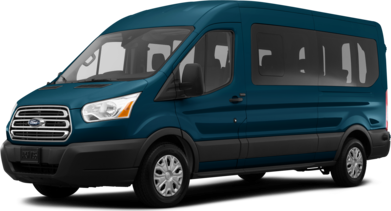

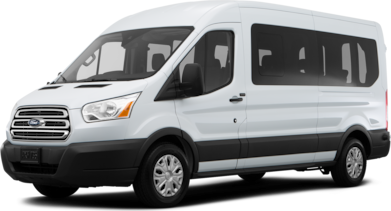

1 of 10  Transit 350 Wagon XL w/Low Roof w/60/40 Side Door Van 3D | 2 of 10  Transit 350 Wagon XLT w/Low Roof w/60/40 Side Door Van 3D | 3 of 10  Transit 350 Wagon XL w/Low Roof w/Sliding Side Door Van 3D | 4 of 10  Transit 350 Wagon XLT w/Medium Roof w/Sliding Side Door Van 3D | 5 of 10  Transit 350 Wagon XLT w/Low Roof w/Sliding Side Door Van 3D | 6 of 10  Transit 350 Wagon XL w/Medium Roof w/Sliding Side Door Van 3D | 7 of 10 Transit 350 Wagon XLT w/High Roof w/Sliding Side Door Van 3D | 8 of 10 Transit 350 Wagon XLT Extended Length w/High Roof w/Sliding Side Door Van 3D | 9 of 10 Transit 350 Wagon XL w/High Roof w/Sliding Side Door Van 3D | 10 of 10 Transit 350 Wagon XL Extended Length w/High Roof w/Sliding Side Door Van 3D | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fair Market Price | $18,330 | $19,038 | $21,958 | $22,406 | $23,671 | $24,312 | $27,190 | $29,250 | $30,227 | $31,912 | ||
| Fuel Type | Flexible Fuel | Flexible Fuel | Flexible Fuel | Gas | Flexible Fuel | Flexible Fuel | Gas | Gas | Flexible Fuel | Gas | ||
| Horsepower | 275 @ 6000 RPM | 275 @ 6000 RPM | 275 @ 6000 RPM | 310 @ 5500 RPM | 275 @ 6000 RPM | 275 @ 6000 RPM | 310 @ 5500 RPM | 310 @ 5500 RPM | 275 @ 6000 RPM | 310 @ 5500 RPM | ||
| Seating | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | ||
| Cargo Volume | 256.40 cu ft | 256.40 cu ft | 256.40 cu ft | 336.10 cu ft | 256.40 cu ft | 336.10 cu ft | 382.60 cu ft | 461.90 cu ft | 382.60 cu ft | 461.90 cu ft | ||
| Tire Size | LT235/65R16 | LT235/65R16 | LT235/65R16 | LT235/65R16 | LT235/65R16 | LT235/65R16 | LT235/65R16 | LT195/75R16 | LT235/65R16 | LT195/75R16 | ||
| Towing Capacity | 5,100 lbs | 5,100 lbs | 5,100 lbs | 5,100 lbs | 5,100 lbs | 5,100 lbs | 5,100 lbs | 5,000 lbs | 5,100 lbs | 5,000 lbs | ||
| Transmission | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | Auto, 6-Spd SelectShift | ||
| Curb Weight | 6,034 pounds | 6,034 pounds | 6,034 pounds | 6,134 pounds | 6,034 pounds | 6,134 pounds | 6,224 pounds | 6,810 pounds | 6,224 pounds | 6,810 pounds | ||
| Dimensions | 237.6" L x 97.4" W x 82.4" H | 237.6" L x 97.4" W x 82.4" H | 237.6" L x 97.4" W x 82.4" H | 237.6" L x 97.4" W x 99.2" H | 237.6" L x 97.4" W x 82.4" H | 237.6" L x 97.4" W x 99.2" H | 237.6" L x 97.4" W x 108.6" H | 266.1" L x 97.4" W x 108.6" H | 237.6" L x 97.4" W x 108.6" H | 266.1" L x 97.4" W x 108.6" H |
| Driver Attention Assist Monitor | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Emergency & Security Services | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Parental Control System | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Traction Control | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Bluetooth Wireless Technology | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Cruise Control | Optional | Standard | Optional | Standard | Standard | Optional | Standard | Standard | Optional | Optional | ||
| Remote Keyless Entry | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Remote Engine Start | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Smartphone Interface | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Audible label Messaging | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Internet Access | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Navigation System | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Voice Recognition System | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Touch Screen Monitor | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Hands Free Phone | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Bluetooth Streaming Audio | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Bluetooth Wireless Technology | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Satellite Radio | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Remote Keyless Entry | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Cruise Control | Optional | Standard | Optional | Standard | Standard | Optional | Standard | Standard | Optional | Optional | ||
| Bluetooth Streaming Audio | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Heated Mirrors | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Torque | 260 @ 6000 RPM | 260 @ 6000 RPM | 260 @ 6000 RPM | 400 @ 5500 RPM | 260 @ 6000 RPM | 260 @ 6000 RPM | 400 @ 5500 RPM | 400 @ 5500 RPM | 260 @ 6000 RPM | 400 @ 5500 RPM |
| Third Row Seat | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Power Driver's Seat | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Leather-Wrapped Steering Wheel | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Power Outlet | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Power Windows | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Rear Window Defroster | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Steering Wheel Controls | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Tilt Steering Wheel | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Tilt/Telescoping Steering Wheel | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Alloy Wheels | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Not Available | Optional | Not Available | ||
| Privacy Glass | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Rain Sensing Windshield Wipers | Not Available | Standard | Not Available | Standard | Standard | Not Available | Standard | Standard | Not Available | Not Available |
| Alarm System | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Drivetrain | RWD | RWD | RWD | RWD | RWD | RWD | RWD | RWD | RWD | RWD | ||
| Hill Start Assist | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Limited Slip Differential | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | ||
| Recommended Fuel | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | ||
| Stability Control | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | ||
| Transmission Type | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
| Curb Weight | 6034 pounds | 6034 pounds | 6034 pounds | 6134 pounds | 6034 pounds | 6134 pounds | 6224 pounds | 6810 pounds | 6224 pounds | 6810 pounds | ||
| Fuel Capacity | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | 25 gallons | ||
| Front Head Room | 40.8 inches | 40.8 inches | 40.8 inches | 52 inches | 40.8 inches | 52 inches | 56.6 inches | 56.6 inches | 56.6 inches | 56.6 inches | ||
| Front Leg Room | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | 41.3 inches | ||
| Minimum Ground Clearance | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | ||
| Overall Length | 237.6 inches | 237.6 inches | 237.6 inches | 237.6 inches | 237.6 inches | 237.6 inches | 237.6 inches | 266.1 inches | 237.6 inches | 266.1 inches | ||
| Payload Capacity | 2900 pounds | 2900 pounds | 2900 pounds | 2800 pounds | 2900 pounds | 2800 pounds | 2710 pounds | 3480 pounds | 2710 pounds | 3480 pounds | ||
| Front Shoulder Room | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | 67.9 inches | ||
| Turning Diameter | 48 feet | 48 feet | 48 feet | 48 feet | 48 feet | 48 feet | 48 feet | 47.8 feet | 48 feet | 47.8 feet | ||
| Wheel Base | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | 147.6 inches | ||
| Width with mirrors | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches | 97.4 inches |
FAQs
Is the Ford Transit 350 Wagon a 4 or 6 cylinder?
All trim levels of the 2016 Transit 350 Wagon feature a 6 cylinder engine. For a more detailed look at the 2016 Transit 350 Wagon specs, features and options check out Kelley Blue Book's 2016 Ford Transit 350 Wagon specs page.
Does the 2016 Ford Transit 350 Wagon have a turbo?
Yes, the following 2016 Transit 350 Wagon trims have turbo engines: XLT w/Medium Roof w/Sliding Side Door Van 3D with a V6, EcoBoost, Twin Turbo, 3.5 Liter, XLT w/High Roof w/Sliding Side Door Van 3D with a V6, EcoBoost, Twin Turbo, 3.5 Liter, etc. The following 2016 Transit 350 Wagon trims do not have turbo engines: XL w/Low Roof w/60/40 Side Door Van 3D with a V6, Flex Fuel, 3.7 Liter, XLT w/Low Roof w/60/40 Side Door Van 3D with a V6, Flex Fuel, 3.7 Liter, etc. For a more detailed look at the 2016 Transit 350 Wagon specs, features and options check out Kelley Blue Book's 2016 Ford Transit 350 Wagon specs page.
What features does a 2016 Transit 350 Wagon have?
2016 Ford Transit 350 Wagon features include AM/FM Radio, Driver Airbag, and Passenger Airbag. For a full list of All 2016 Transit 350 Wagon trims and their respective features and specs compared side-by-side, check out Kelley Blue Book's 2016 Ford Transit 350 Wagon specs page.
How much horsepower does a 2016 Transit 350 Wagon have?
The 2016 Transit 350 Wagon ranges in power from the XL w/Low Roof w/60/40 Side Door Van 3D with 275 horsepower to the XL Extended Length w/High Roof w/Sliding Side Door Van 3D with 310 horsepower. For a more detailed look at the 2016 Transit 350 Wagon specs, features and options check out Kelley Blue Book's 2016 Ford Transit 350 Wagon specs page.
Is the Ford Transit 350 Wagon underpowered?
It depends on your definition of underpowered. The 2016 Transit 350 Wagon ranges in power from the XL w/Low Roof w/60/40 Side Door Van 3D with 275 horsepower to the XL Extended Length w/High Roof w/Sliding Side Door Van 3D with 310 horsepower. For a more detailed look at the 2016 Transit 350 Wagon specs, features and options check out Kelley Blue Book's 2016 Ford Transit 350 Wagon specs page.
All 2016 Ford Transit 350 Wagon Trims and Styles
- 2016 Ford Transit 350 Wagon XL W/low Roof W/60/40 Side Door Van 3D
- 2016 Ford Transit 350 Wagon XLT W/low Roof W/60/40 Side Door Van 3D
- 2016 Ford Transit 350 Wagon XL W/low Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XLT W/medium Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XLT W/low Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XL W/medium Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XLT W/high Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XLT Extended Length W/high Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XL W/high Roof W/sliding Side Door Van 3D
- 2016 Ford Transit 350 Wagon XL Extended Length W/high Roof W/sliding Side Door Van 3D
