2017 Freightliner Sprinter 3500XD Cargo Specs, Features & Options
Here's everything you need to know about each trim in the 2017 Freightliner Sprinter 3500XD Cargo lineup. Compare pricing, specs, key features and more.

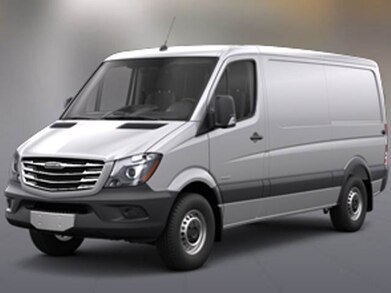

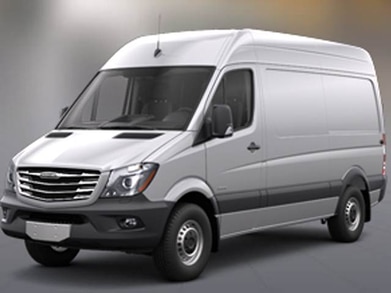

1 of 4  Sprinter 3500XD Cargo High Roof w/144" WB Van 3D | 2 of 4  Sprinter 3500XD Cargo Standard Roof w/144" WB Van 3D | 3 of 4  Sprinter 3500XD Cargo High Roof w/170" WB Van 3D | 4 of 4 Sprinter 3500XD Cargo High Roof Extended w/170" WB Van 3D | |||
|---|---|---|---|---|---|---|
| Fair Market Price | $33,496 | $34,651 | $35,526 | $35,553 | ||
| Fuel Type | Diesel | Diesel | Diesel | Diesel | ||
| Horsepower | 188 @ 3800 RPM | 188 @ 3800 RPM | 188 @ 3800 RPM | 188 @ 3800 RPM | ||
| Seating | N/A | 3 | 3 | 3 | ||
| Cargo Volume | 329.30 cu ft | 329.30 cu ft | 428.70 cu ft | 467.00 cu ft | ||
| Tire Size | LT215/85R16 | LT215/85R16 | LT215/85R16 | LT215/85R16 | ||
| Towing Capacity | 7,500 lbs | 7,500 lbs | 7,500 lbs | 5,000 lbs | ||
| Transmission | Automatic, 5-Spd | Automatic, 5-Spd | Automatic, 5-Spd | Automatic, 5-Spd | ||
| Dimensions | 233.3" L x 95.5" W x 107" H | 233.3" L x 95.5" W x 107.3" H | 274.1" L x 95.5" W x 107" H | 289.8" L x 95.5" W x 106.1" H |
| Blind-Spot Alert | Not Available | Optional | Optional | Optional | ||
| Child Seat Anchors | Not available | Not available | Not available | Not available | ||
| Child Door Locks | Not available | Not available | Not available | Not available |
| Bluetooth Wireless Technology | Not Available | Standard | Standard | Standard | ||
| Cruise Control | Not Available | Optional | Optional | Optional | ||
| Remote Keyless Entry | Not Available | Standard | Standard | Standard | ||
| Navigation System | Not Available | Optional | Optional | Optional | ||
| Hands Free Phone | Not Available | Standard | Standard | Standard |
| iPod Connector | Not Available | Standard | Standard | Standard | ||
| iPod Interface | Not Available | Standard | Standard | Standard | ||
| Bluetooth Streaming Audio | Not Available | Standard | Standard | Standard | ||
| Bluetooth Wireless Technology | Not Available | Standard | Standard | Standard |
| Remote Keyless Entry | Not Available | Standard | Standard | Standard | ||
| Cruise Control | Not Available | Optional | Optional | Optional | ||
| Bluetooth Streaming Audio | Not Available | Standard | Standard | Standard | ||
| Heated Mirrors | Not Available | Optional | Optional | Optional | ||
| Heated Windshield | Not Available | Optional | Optional | Optional |
| Torque | 325 @ 3800 RPM | 325 @ 3800 RPM | 325 @ 3800 RPM | 325 @ 3800 RPM |
| Power Outlet | Not Available | Optional | Optional | Optional | ||
| Rear Window Defroster | Not Available | Optional | Optional | Optional | ||
| Tilt Steering Wheel | Not Available | Standard | Standard | Standard | ||
| Tilt/Telescoping Steering Wheel | Not Available | Standard | Standard | Standard | ||
| Cup Holder Count | Not Available | Standard | Standard | Standard |
| Fog Lights | Not Available | Optional | Optional | Optional | ||
| Privacy Glass | Not Available | Optional | Optional | Optional | ||
| Roof Rails | Not Available | Optional | Optional | Optional | ||
| Rain Sensing Windshield Wipers | Not Available | Optional | Optional | Optional |
| Alarm System | Not Available | Optional | Optional | Optional |
| Drivetrain | RWD | RWD | RWD | RWD | ||
| Hill Start Assist | Not Available | Standard | Standard | Standard | ||
| Recommended Fuel | Diesel | Diesel | Diesel | Diesel | ||
| Stability Control | Not Available | Standard | Standard | Standard | ||
| Transmission Type | Automatic | Automatic | Automatic | Automatic |
| Fuel Capacity | 24.5 gallons | 24.5 gallons | 24.5 gallons | 24.5 gallons | ||
| Minimum Ground Clearance | 7.8 inches | 7.8 inches | 7.8 inches | 7.8 inches | ||
| Overall Length | 233.3 inches | 233.3 inches | 274.1 inches | 289.8 inches | ||
| Payload Capacity | 5507 pounds | 5507 pounds | 5133 pounds | 4967 pounds | ||
| Turning Diameter | 44.6 feet | 44.6 feet | 51.5 feet | 51.5 feet | ||
| Wheel Base | 144.3 inches | 144.3 inches | 170.3 inches | 170.3 inches | ||
| Width with mirrors | 95.5 inches | 95.5 inches | 95.5 inches | 95.5 inches |
FAQs
Is the Freightliner Sprinter 3500XD Cargo a 4 or 6 cylinder?
All trim levels of the 2017 Sprinter 3500XD Cargo feature a 6 cylinder engine. For a more detailed look at the 2017 Sprinter 3500XD Cargo specs, features and options check out Kelley Blue Book's 2017 Freightliner Sprinter 3500XD Cargo specs page.
Does the 2017 Freightliner Sprinter 3500XD Cargo have a turbo?
Yes, the following 2017 Sprinter 3500XD Cargo trims have turbo engines: High Roof w/144" WB Van 3D with a V6, Turbo Diesel, 3.0 Liter, Standard Roof w/144" WB Van 3D with a V6, Turbo Diesel, 3.0L, etc. For a more detailed look at the 2017 Sprinter 3500XD Cargo specs, features and options check out Kelley Blue Book's 2017 Freightliner Sprinter 3500XD Cargo specs page.
How much horsepower does a 2017 Sprinter 3500XD Cargo have?
All 2017 Sprinter 3500XD Cargo trim variations have 188 horsepower. For a more detailed look at the 2017 Sprinter 3500XD Cargo specs, features and options check out Kelley Blue Book's 2017 Freightliner Sprinter 3500XD Cargo specs page.
Is the Freightliner Sprinter 3500XD Cargo underpowered?
It depends on your definition of underpowered. All 2017 Sprinter 3500XD Cargo trim variations have 188 horsepower. For a more detailed look at the 2017 Sprinter 3500XD Cargo specs, features and options check out Kelley Blue Book's 2017 Freightliner Sprinter 3500XD Cargo specs page.
